Spatio Temporal Model Architecture
The model takes daily SST (or similar) data in video format: x ∈ ℝ^{B × 1 × T ×
H × W} and a daily_mask indicating missing pixels. It also takes
land_mask_patch indicating land regions in the output. The model does of the
following tasks:
- Combines video encoder, temporal attention, spatial transformer, and decoder
- Encodes 3D data (space, time) into spatio-temporal patches
- Aggregates temporal information per spatial patch
- Mixes spatial features across patches
- Decodes back to original spatial resolution

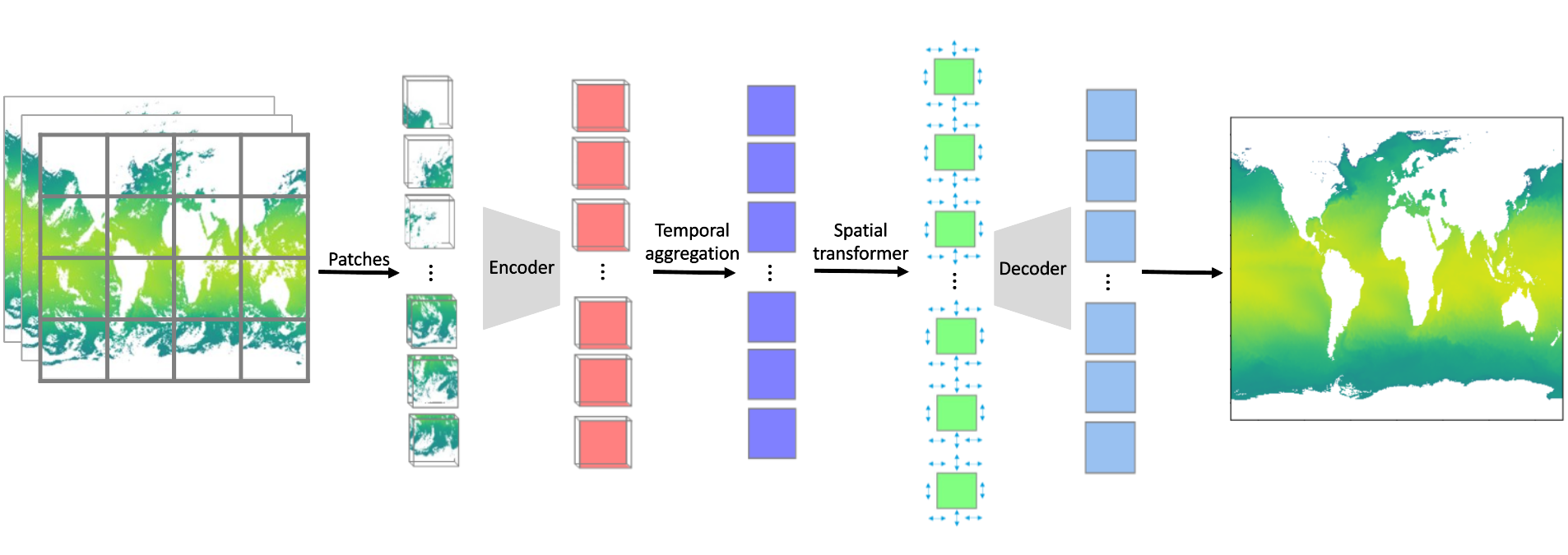

The architecture consists of the following steps:
# 1. Patch embedding:
X (VideoEncoder)---------> X_patch
# 2. Add temporal encoding +
# 3. Temporal aggregation:
X_patch + PE (TemporalAttentionAggregator)---------> X_temp_agg
# 4. Add spatial encoding +
# 5. Spatial transformer:
X_temp_agg + PE (SpatialTransformer) ---------> X_mixed
# 6. Decode to original resolution:
X_mixed (MonthlyConvDecoder)---------> Output
Model architecture description
We explain the model architecture in more detail in the code and math description document.
Using HPC (Levante)
If you have access to the Levante HPC cluster, you can run the workflow using
slurm or jupyter hub. Please refer to the Levante usage
instructions for more details.
